Webhooks

Webhooks let external systems trigger agent actions by sending an HTTP POST request to a unique URL. Each webhook is bound to an agent and a thread strategy — so when a request arrives, Codebolt knows exactly which agent to notify and how to manage the conversation thread.

Open via: System Settings → Routing Gateway → Webhooks tab

How a webhook works

1. You create a webhook and Codebolt generates a unique URL: POST /gateway/webhook/{id}
2. You configure an external system (GitHub, Slack, Zapier, your own service) to POST to that URL
3. When a request arrives, the gateway validates the HMAC signature using the webhook secret
4. The payload is delivered to the configured agent as a message
5. If a targetUrl is set, the agent's reply is POSTed back to it

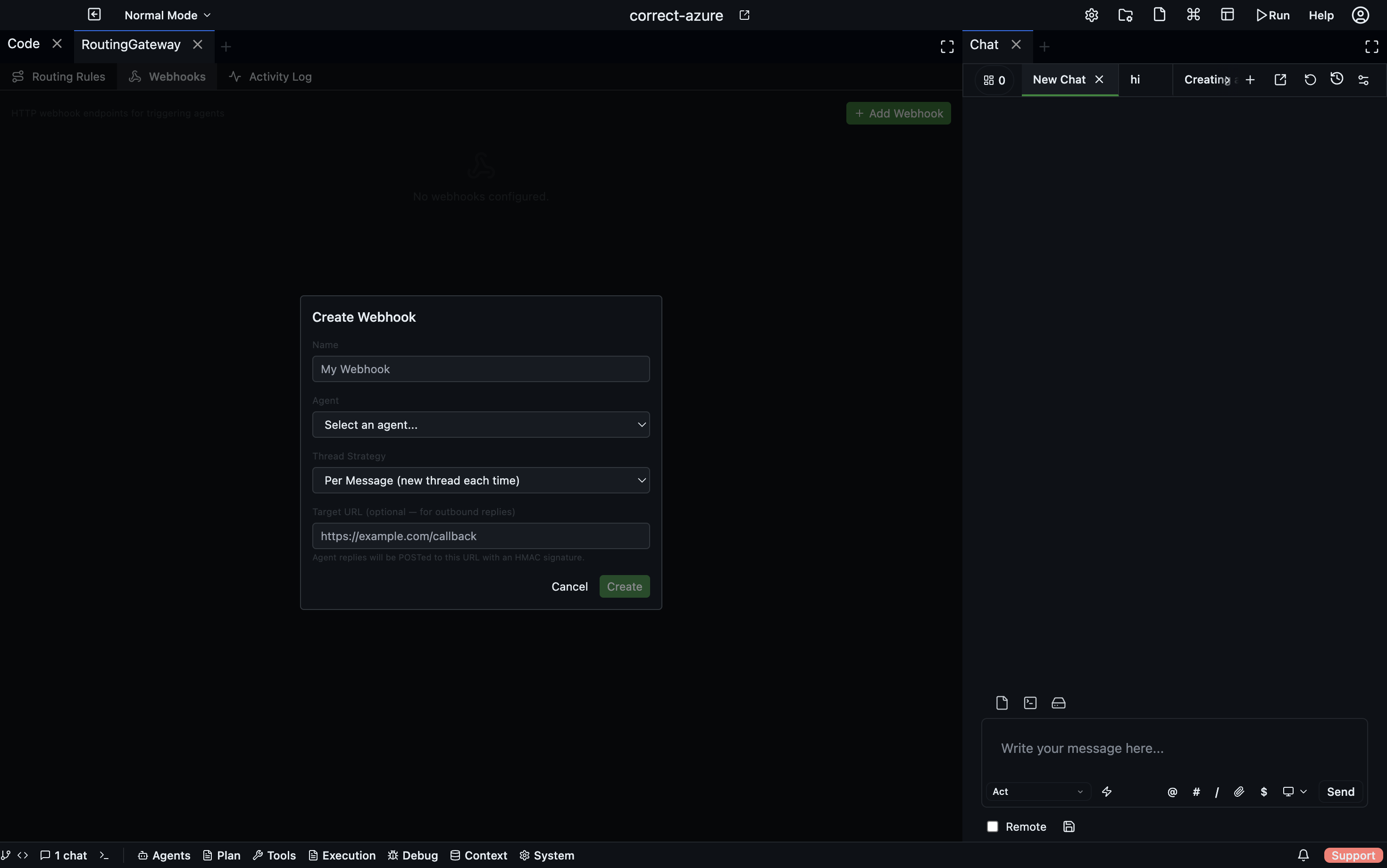

Creating a webhook

Open the Routing Gateway → Webhooks tab and click +. Configure:

Field	Description
Name	A label for this webhook
Agent	Which agent receives the incoming messages
Thread strategy	How conversation threads are managed (see below)
Environment	Optional — which environment the agent runs in
Reply target URL	Optional — where to POST the agent's response
Enabled	Toggle to activate or pause the webhook

Thread strategies

Strategy	Behaviour
single	All requests share one global thread
per-user	One thread per userId in the payload
per-conversation	One thread per externalThreadId in the payload
per-message	A fresh thread for every incoming request
existing	Route to a specific existing thread ID

Choose per-conversation when integrating with a chat platform (Slack, Discord) where each channel or DM should map to its own Codebolt thread. Choose per-message for stateless, fire-and-forget tasks.

Webhook security

Each webhook has a secret — a 64-character hex string used for HMAC-SHA256 request validation. Include the signature in the X-Codebolt-Signature header of outgoing requests. Requests with an invalid or missing signature are rejected.

Manage the secret from the webhook card:

• Show / Hide — reveal the raw secret
• Copy — copy to clipboard
• Regenerate — rotate the secret (invalidates the old one immediately)

Activity log

The Activity Log tab shows every request that passed through the gateway, with:

• Timestamp and source type
• Thread ID used
• Action taken (routed-to-running, spawned-new, failed)
• Agent ID and response time
• Error message if the request failed

Filter by source type (Webhooks / Hooks / Calendar / Channels) to focus on webhook traffic.

Reply routing

If you set a Reply target URL, the gateway POSTs the agent's response back to that URL after the agent finishes. The reply is signed with the same HMAC secret so the receiving system can verify it came from Codebolt.

This enables full request-response integrations — send a task, get the result delivered to a callback URL.

Payload format

Incoming POST bodies are passed as the message text. Include a userId or externalThreadId field in your JSON payload to use the per-user or per-conversation thread strategies:

{
  "text": "Review PR #42 and summarise the changes",
  "userId": "user-123",
  "externalThreadId": "channel-456",
  "metadata": {}
}
