Memory Layers

Codebolt uses eight distinct memory stores. Each one is optimised for a different class of data, lifetime, and access pattern. Knowing which layer to write to — and when — determines how reliably your agents recall information.

Working memory

Lifetime: single LLM turn
Location: in-process only, not persisted

Working memory is a per-turn scratchpad. An agent can write intermediate notes, partial tool results, or calculation steps here during a multi-step chain. The contents are discarded the moment the turn completes and never reach disk.

Use working memory for:

• Decomposing a complex task into sub-steps before acting
• Accumulating partial tool outputs before summarising
• Notes the agent needs mid-turn but not in the next turn

Episodic memory

Lifetime: single agent run
Location: .codebolt/memory/episodic/

Episodic memory stores the full turn-by-turn history of the current run: every user message, every LLM response, every tool call and its result. It is the primary source of short-term coherence — what lets an agent say "three steps ago I fetched this file."

The episodic record is bounded by the run. When a new run starts, a fresh episodic log begins. Previous run logs are archived and can be searched via the event log or a persistent memory pipeline.

Use episodic memory for:

• Maintaining turn-by-turn context within a run
• Reviewing what the agent did and why (via the UI's turn history panel)
• Debugging unexpected agent behaviour

KV store

Lifetime: persistent
Location: .codebolt/memory/kv.json

A flat key → value store backed by a JSON file. Read and write operations are synchronous and cheap. The entire store can be loaded eagerly into context when a context rule references it.

Use the KV store for:

• User preferences (theme, language, preferred_branch)
• Feature flags and toggles
• Simple counters or state machines (onboarding_step: 3)
• Values that must survive across runs and sessions

SDK access:

await codebolt.memory.kv.set('preferred_language', 'TypeScript');
const lang = await codebolt.memory.kv.get('preferred_language');

JSON store

Lifetime: persistent
Location: .codebolt/memory/json/

Named JSON documents with a schema. Larger and more structured than KV. Each document is an independent file; agents read and write whole documents or individual fields.

Use the JSON store for:

• Per-project configuration objects
• Structured agent state that has internal shape ({ tasks: [...], completedAt: ... })
• Records that agents need to update programmatically across runs

SDK access:

await codebolt.memory.json.write('project-config', { linter: 'eslint', formatter: 'prettier' });
const config = await codebolt.memory.json.read('project-config');

Markdown notes

Lifetime: persistent
Location: .codebolt/memory/notes/

Plain .md files that both agents and developers can read and edit with any text editor. Versioned alongside the project in git.

Use Markdown notes for:

• Decisions and rationale that should be readable without tooling
• Shared knowledge between the developer and the agent ("here is how we name things")
• Long-form context that would be too large to fit in the KV or JSON store

SDK access:

await codebolt.memory.markdown.append('architecture-decisions', '## Decision: use Kuzu\n...');
const notes = await codebolt.memory.markdown.read('architecture-decisions');

Knowledge graph

Lifetime: persistent
Location: .codebolt/knowledgegraph/kuzu/

An embedded Kuzu graph database. Entities (files, symbols, functions, people, concepts) are nodes; relationships (calls, imports, depends-on, authored-by) are edges. The graph supports Cypher queries.

The knowledge graph is populated automatically by the llm_extract processor in the ingestion pipeline, which reads agent-processed text and extracts entities and relationships. It is queried at retrieval time via graph_view_read steps in persistent memory pipelines.

Use the knowledge graph for:

• Code structure: "which modules import this function?"
• Dependency tracking: "what does this service depend on?"
• Entity relationships that need traversal queries

SDK access:

const result = await codebolt.memory.graph.query(
  'MATCH (f:Function)-[:CALLS]->(g:Function {name: "processPayment"}) RETURN f.name'
);

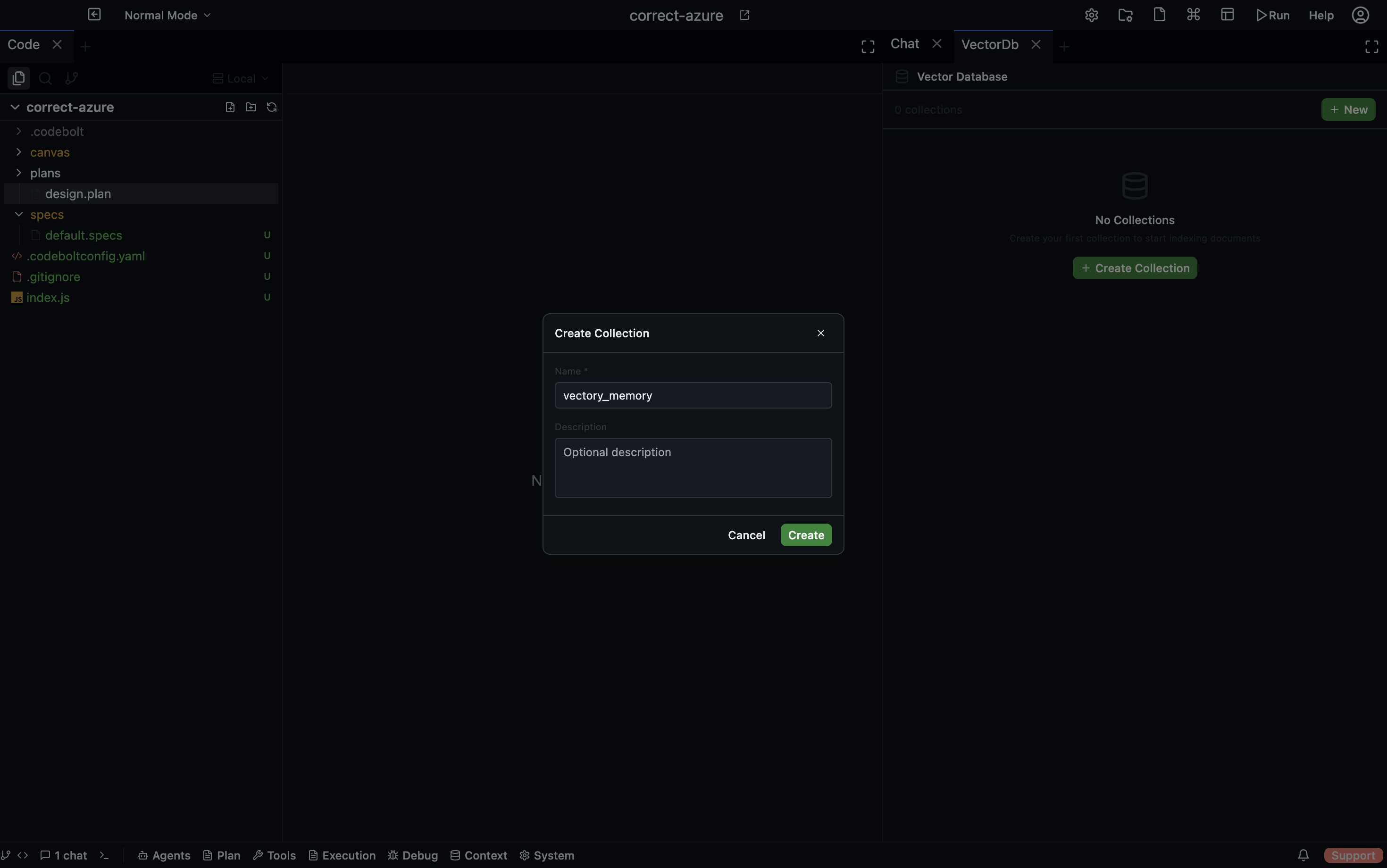

Vector store

Lifetime: persistent
Location: .codebolt/vectordb/

Semantic embeddings for any text content — code chunks, conversation summaries, document passages. At retrieval time the current query is embedded and nearest neighbours are returned by cosine similarity.

The vector store is populated by the vector_embed processor in the ingestion pipeline. It is queried by vector_search steps in persistent memory pipelines.

Use the vector store for:

• "What have we discussed about authentication before?"
• Recalling relevant past code that matches the current task description
• Fuzzy-matching knowledge that doesn't map cleanly to a graph query

SDK access:

await codebolt.memory.vector.embed('The payment flow uses Stripe webhooks for async confirmation.');
const results = await codebolt.memory.vector.search('how does payment confirmation work?', { topK: 5 });

Event log

Lifetime: persistent (append-only)
Location: internal structured log

An append-only log of every significant event in the agent's lifetime: tool calls, errors, user messages, task transitions, memory writes, ingestion runs. The event log is the source of truth for auditing — nothing is edited or deleted.

The event log is queried via log_search steps in persistent memory pipelines, filtered by event type, time range, or field values.

Use the event log for:

• Auditing what actions an agent took and when
• Debugging a failed run by replaying its event stream
• Building persistent memories that summarise recent activity patterns

See Event Log for the panel, query modes, and event categories.

---

Choosing the right layer

You want to store…	Use
A flag or preference that persists	KV store
A structured config object	JSON store
A human-readable note	Markdown notes
Entity/relationship data	Knowledge graph
Semantically searchable text	Vector store
A scratchpad for this turn only	Working memory
Full turn history	Episodic (automatic)
An audit trail	Event log (automatic)
